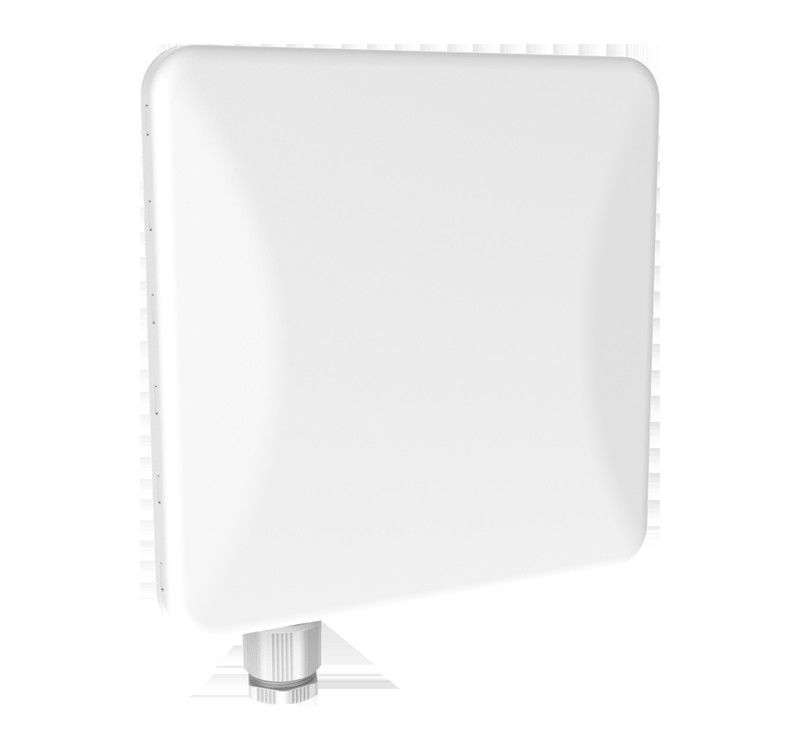

High Speed CPE Outdoor 5G Wireless Router Multiple Band GNSS Support

Name: High Speed CPE Outdoor 5G Wireless Router Multiple Band GNSS Support
Brand: SY
SKU: MVP900
Price: 39 USD
Availability: InStock
Rating: 4.6 (164 reviews)

Product Details

Place of Origin: China

Brand Name: SY

Certification: FCC/CE/ROSH

Model Number: MVP900

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$39-US$45/PC

Packaging Details: Standard color box or customized design color box packaging

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 3000 pieces per week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                CPE 5G Wireless Router, 5G Wireless Router GNSS Support, CPE Outdoor 5G Router


CPU:	MT7621AT	RAM:	128M
ROM:	16M	Power Supply:	12V 1A Passive PoE
Dimension:	180 Mm X 180 Mm X 45 Mm	Weight:	830g
Mounting:	Pole Mounting Bracket Included(Diameter 3 - 7cm), Tilt +/-20°

CPU:	MT7621AT
RAM:	128M
ROM:	16M
Power Supply:	12V 1A Passive PoE
Dimension:	180 Mm X 180 Mm X 45 Mm
Weight:	830g
Mounting:	Pole Mounting Bracket Included(Diameter 3 - 7cm), Tilt +/-20°

High Speed CPE Outdoor 5G Wireless Router Multiple Band GNSS Support

High Speed 5G Outdoor CPE Wireless Router - Multiple Band, GNSS Support

MVP900 - 5G Outdoor CPE

The product is an outdoor 5G terminal of high speed, wide range, low latency and high reliability. The 5G module in the product is based on the UNISOC UDX710 platform, supporting NSA and SA architecture, 5G NR Sub6, FDD-LTE, TDD-LTE, WCDMA and other long-distance communication modes. The 5G standard of the product is 3GPP Release 15. The product adopts the industrial-grade enclosure and waterproof design, protection grade up to IP66, supports flexible pole installation, suitable for all kinds of outdoor 5G access applications, meets internet access need of various industrial, commercial, agricultural, education industry, can be widely used in intelligent factory, health care, autonomous vehicles, agriculture and other kinds of scenarios.

High Speed CPE Outdoor 5G Wireless Router Multiple Band GNSS Support 2

Frequency Band
CN	AE	EAU6
WCDMA/HSPA+: Band 1/2/5/8 LTE FDD: Band 1/2/3/5/7/8 LTE TDD: Band 34/ 38/39/40/41 NR: n1/n281/n41/n78/n79	WCDMA: Band 1/2/5/8 FDD-LTE: Band 1/2/3/5/7/8 TDD-LTE: Band 34/39/40/41 FDD-NR: n1/28, TDD-NR: n41/77/78/79 GNSS: GPS/GLONASS/Galileo/BDS/ QZSS	5G Sub-6: n1/3/5/7/8/20/28/38/40/41/75/76/77/78 LTE FDD: B1/3/5/7/8/20/28/32 LTE TDD: B38/40/41/42/43 WCDMA: B1/5/8 5G NR DL 44 MIMO: n1/3/5/7/20/28 /38/40/41/75/76/77/78 UL 22MIMO: n41/77/78 LTE : DL 4*4 MIMO: B1/3/5/7/20/28/32/ 38/40/41/42/43

Product Description

CPU/Memory

Chipset: CPU: MT7621AT, Radio: MT7612 + MT7603

RAM: 128M

ROM: 16M

5G/4G

Standard: 3GPP Release 15

Compatibility: 5G / 4G / 3G

5G architecture: NSA / SA

Frequency(optional):
CN - WCDMA/HSPA+: Band 1/2/5/8, LTE FDD: Band 1/2/3/5/7/8, LTE TDD: Band 34/38/39/40/41, NR: n1/n281/n41/n78/n79

AE - WCDMA: Band 1/2/5/8, FDD-LTE: Band 1/2/3/5/7/8, TDD-LTE: Band 34/39/40/41,

FDD - NR: n1/28, TDD-NR: n41/77/78/79, GNSS: GPS/GLONASS/Galileo/BDS/QZSS

EAU6 - 5G Sub-6: n1/3/5/7/8/20/28/38/40/41/75/76/77/78, LTE FDD: B1/3/5/7/8/20/28/32

LTE TDD: B38/40/41/42/43, WCDMA: B1/5/8, 5G NR DL 4*4 MIMO: n1/3/5/7/20/28/38/40/41/75/76/77/78 UL 2*2MIMO: n41/77/78, LTE : DL 4*4 MIMO: B1/3/5/7/20/28/32/38/40/41/42/43

5G rate: 2.2Gbps / 766Mbps Max(Region dependent)

4G rate: 487Mbps / 150Mbps Max(Region dependent)

WLAN

Frequency: 2.4Ghz

Type: Management(For installation)

Antenna

5G/4G: Integrated 5G/4G main/diversity antenna

WiFi: Integrated 2.4 Ghz 3dBi omni

Interfaces

Wire: 1 x 10/100/1000 ETH port, RJ45

Card slot: 1 x Nano SIM

LED: 1 x Power, 1 x LAN, 1 x Link, 3 x 4G/5G Signal Level

Other: Reset Button x 1

Software

Operating mode: 5G/4G to wired

Services: DHCP Server

Network techniques: VPN(L2TP/PPTP)

Security: IP/MAC binding

Management: Web, TR069

LTE: Link status detecting, Frequency locking, Data usage management, Network priority, IMEI code modifying

Other: Quick installation guide

Physical

Dimension: 180 mm x 180 mm x 45 mm

Weight: 830 g

Mounting: Pole mounting bracket included(Diameter 3 - 7cm), Tilt +/-20°

Power

Power supply: 12V 1A Passive PoE

Power source: 100 – 240V AC, 50/60Hz

Power consumption (max): 24 W

Environmental
Operating temperature: -30°C ~ +60°C

Humidity: 0 ~ 90 % (non-condensing)

Package contains
CPE: 1

PoE: 1

Sliding block: 1

Other: RJ45 Cable x 1, Metal strap x 1, Screw x 4, Wall plug x 4, QIG x 1, Warranty card x1, Spanner x 1
