Product Details
Place of Origin: China
Brand Name: SY
Certification: FCC/CE/ROSH
Model Number: GW113
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: US$27-US$31/PC
Packaging Details: Standard color box or customized design color box packaging
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 pieces per week
Antenna: |
2 X External Antenna |
Data Rate: |
Up To 300Mbps |
Frequency Band: |
2.4GHz/5GHz |
Interface: |
1 X 10/100Mbps WAN/LAN Port, 1 X USB 2.0 Port |
Network Protocol: |
TCP/IP, DHCP, ICMP, NAT, PPPoE |
Operating Temperature: |
0℃~40℃ |
Power Supply: |
DC 12V/1A |
Product Name: |
4G LTE WiFi Router |
Relative Humidity: |
10%~90% Non-condensing |
Security: |
WPA-PSK/WPA2-PSK Encryption |
Storage Temperature: |
-40℃~70℃ |
Wireless Standard: |
802.11b/g/n/ac |
Antenna: |
2 X External Antenna |
Data Rate: |
Up To 300Mbps |
Frequency Band: |
2.4GHz/5GHz |
Interface: |
1 X 10/100Mbps WAN/LAN Port, 1 X USB 2.0 Port |
Network Protocol: |
TCP/IP, DHCP, ICMP, NAT, PPPoE |
Operating Temperature: |
0℃~40℃ |
Power Supply: |
DC 12V/1A |
Product Name: |
4G LTE WiFi Router |
Relative Humidity: |
10%~90% Non-condensing |
Security: |
WPA-PSK/WPA2-PSK Encryption |
Storage Temperature: |
-40℃~70℃ |
Wireless Standard: |
802.11b/g/n/ac |

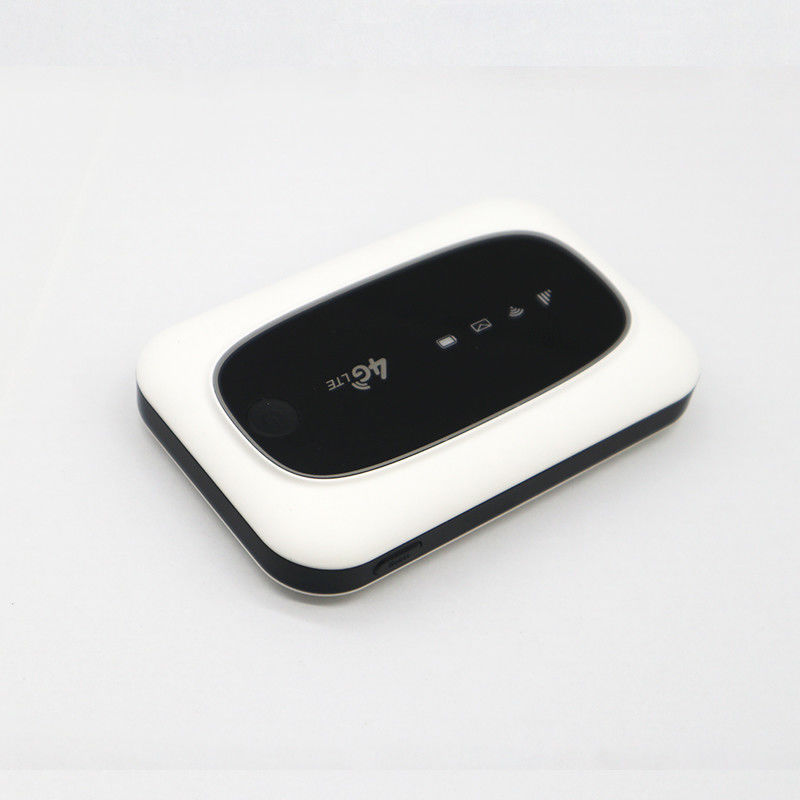

M7 4G LTE WiFi Router: Multilingual, 5dBi Antenna, 3000 mAh Battery
| GW113 - Item M7 4G MIFI Technical Specification V1.0 | ||
| Basic Product Information | Item | Description |
| Model No. | M7 | 4G Wireless Access Point and USB dongle |
| Size | 96.5mm*62.8mm*16mm | 120*86*54(outer packing) |
| Weight | 155g | |
| HW Description | Item | Remarks |
| Hardware platform | FLASH + RAM | 2Gbit Flash+1Gbit DDR2 |
| Chipset | Qualcomm MDM9207 | |
| Introduction | The chip support 4G/3G/2G mobile network access service. Up to 10 users sharing 4G data by dual channel WIFI at the same time.MDM9207 has more Stable performance and Lower power ,Battery working time up to 10 hours,48 hours standby. English/French/German/Spanish/Portuguguese/Arabic language supported, R&D team and factory owned give you full technical support and OEM service | |
| Frequency | FDD-LTE | B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B28A/B28B |
| TDD-LTE | B38/B40/B41 | |
| WCDMA | B1(2100Mhz)/B2(1900Mhz)/B5(850Mhz)/B8(900Mhz) | |
| GSM | 850/900/1800/1900Mhz | |
| Peak Rate | FDD-LTE | Cat 4, DL 150 Mbps ,UL50Mbps |
| TDD-LTE | Cat 4, DL 130 Mbps ,UL35Mbps | |
| UMTS/WCDMA | DL 42Mbps, UL 5.76Mbps | |
| EDGE/GPRS | DL 473.6Kbps, UL 171.2Kbps | |
| Antenna | main/pole antenna | FPC |
| WiFi Information | Item | Remarks |
| Standard | IEEE 802.11n | support 300Mbps with dual channel |
| IEEE 802.11g | support | |
| IEEE 802.11b | support | |
| IEEE 802.11b/g/n | support | |
| IEEE 802.11b/g | support | |
| Wifi Chipset | WIFI 802.11b/g/n | realtek RTL8192ES |
| Frequency | Europe, China | 2.4G |
| U.S.A | 2.4G | |
| Japan | 2.4G | |
| RF antenna | 2*2 MIMO | FPC |
| Wifi Feature | transmission distance | Default coverage radius 100 m (open environment) |
| 1~11 Channel (North America / Canada) | support | |
| 1~13 Channel (Europe / Australia) | support | |
| 1~14 Channel (Japan) | support | |
| SSID broadcast | support | |
| Security and encryption | WPA-Personal,WEP(64-Bit),WEP(128-Bit) |
|
| System definition | Item | Remarks |
| Key indicators | Operating temperature (Celsius) | -10~55℃ |
| Storage temperature (Celsius) | -20~70℃ | |
| Supported language | English/French/German/Spanish/Portuguguese/Arabic others can be added per request | |
| Browser | Google Chrome, Mozilla Firefox,Microsofte IE ,360 IE/ucweb | |
| Driver | Drive installation | Free drive |
| Compatible operating system | Android,windows xp/7/8.1/10,Mac,Linux | |
| Traffic statistics | Downstream traffic statistics | support |
| Upstream traffic statistics | support | |
| Sleep | Sleep mode | Automatic |
| Settings | WIFI Parameter | support |
| Login Password | support | |
| Apn add/Edit/Delete | support | |
| Connect Mode | support | |
| Pin Code | support | |
| Network Mode | support | |
| DHCP Server | support | |
| Mac Filter | support | |
| SMS | WEB UI | Received SMS support |
| Send SMS support | ||
| Phonebook | WEB UI | Phone book is supported |
| Interface Information | Item | Remarks |
| LED | Network indicator | LED is blue when connected to the internet or flashes when internet disconnected. LED is red when there’s no network,service,or SIM card. |
| Wi-Fi indicator | LED is blue when Wi-Fi is active. | |
| SMS indicator | LED is blue when you got a new message or flashes when inbox is full. | |
| Battery indicator | LED is red when battery is low. Light blue LED and slow flashing during working. Light blue LED and quick flashing during charging. Light blue LED when full charged. |
|
| Key | Power Key | Press and hold for 3 seconds to turn the device on/off. |
| Short press to put the LED in either active or sleep mode. | ||
| Press and hold for 10 seconds to reboot device. | ||
| WPS Key | Press and hold WPS button for 3 seconds until Wi-Fi LED blinks. | |
| Short press to put the LED in either active or sleep mode. | ||
| Reset | Press both “Power” and “WPS” key at the same time for 3 seconds.reset device to factory mode | |
| SIM/USIM Card Slot | Yes | Standard 6 PIN Sim Card Interface |
| TF Card | Yes | up to 32G |
| External interface | USB | USB2.0 that is used to provide internal power supply; input 5V 1A |
| Battery | Item | Remarks |
| Lion battery | 2100mAh | Detachable Polymer Li-ion |
Can you printing Customer logo on products?
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
