Product Details
Place of Origin: China
Brand Name: SY
Certification: FCC/CE/ROSH
Model Number: GW132
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: US$23-US$27/PC
Packaging Details: Standard color box or customized design color box packaging
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 pieces per week
Data Rate: |
300Mbps |
Frequency Band: |
2.4GHz/5GHz |
Interface: |
4*10/100Mbps LAN Ports, 1*10/100Mbps WAN Port |
LED Indicator: |
Power/WiFi/WAN/LAN |
Operating Temperature: |
0℃~40℃ |
Power Supply: |
DC 12V/1A |
Security: |
WPA-PSK/WPA2-PSK Encryption |
Wireless Technology: |
4G LTE |
Keyword: |
TP Link Router |
Data Rate: |
300Mbps |
Frequency Band: |
2.4GHz/5GHz |
Interface: |
4*10/100Mbps LAN Ports, 1*10/100Mbps WAN Port |
LED Indicator: |
Power/WiFi/WAN/LAN |
Operating Temperature: |
0℃~40℃ |
Power Supply: |
DC 12V/1A |
Security: |
WPA-PSK/WPA2-PSK Encryption |
Wireless Technology: |
4G LTE |
Keyword: |
TP Link Router |

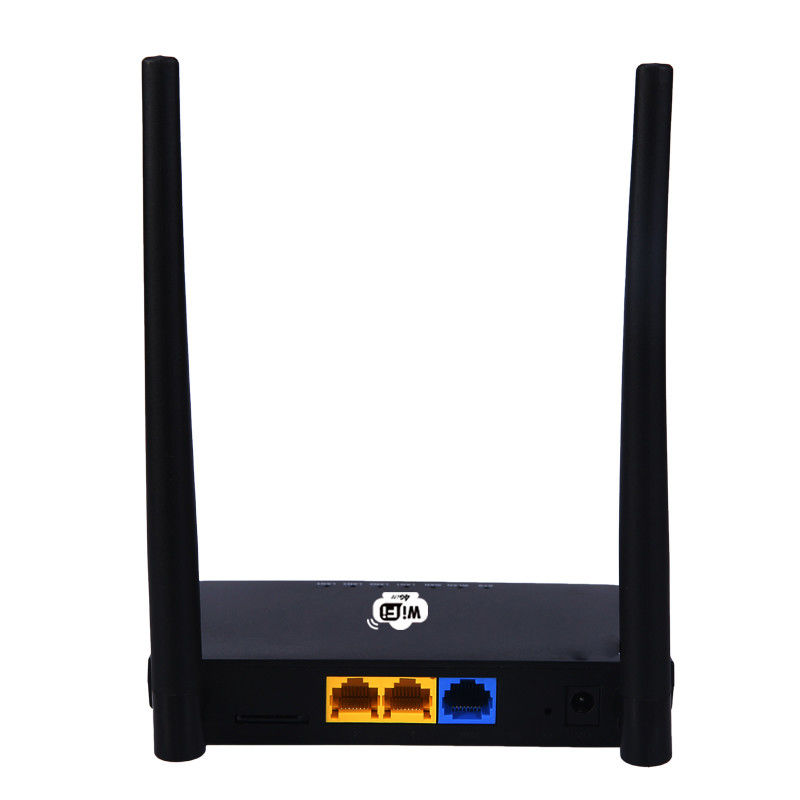

4G LTE WiFi Router GW132 - 300Mbps, 2.4GHz, 32 Users, Share-link
| Hardware specification | |||
| Main CPU | MT7628 | ||
| Memory | DDR2 64MB | ||
| FLASH | SPI 8MB | ||
| Protocol | IEEE802.11b/802.11g/802.11n/802.3/802.3u | ||
| Wi-Fi speed | 2.4g 300Mbps | ||
| Frequency | 2.4GHZ | ||
| Antenna |
2*3dB 2.4G *2R2 internal antenna 2*5bB 4G*2R2 external antenna |
||
| Port |
1*Sim card port 1*Wan 2*Lan 1*DC port |
||
| LED | Power, 2.4G wireless, WAN, LAN1, LAN2, 4G network, network data | ||
| Button | 1*Reset button | ||
| AP adaptor | DC 12V/1A | ||
| Max power consumption | <10W | ||
| Size/Color |
Size:140*85*24MM Color: White/Black (Accept OEM) |
||
| 4G Bands | |||
|
Item: CP602 Chipset: MDM9215 |
FDD-LTE:B1,B2,B4,B5,B8,B17 WCDMA:B1,B2,B4,B5,B8 GSM:850,900,1800,1900 |
||
| Firmware specification | |||
| WAN Interface | dynamic IP, static IP, 3G (4G) dialing | ||
| Working Mode |
AP; ROUTER; |
||
| DHCP server |
DHCP server Client list Static address allocation; |
||
| Support OS | SDK,openwrt, LINUX | ||
| Virtual server |
Port forwarding DMZ support |
||
| Security |
Port- (Protocol-) based filter MAC-based filter |
||
| DDNS | Support | ||
| VPN Tunneling |
Support |
||
| Bandwidth control support | Support | ||
| Static routing | Support | ||
| System log | Support | ||
| Other function | Mac address clone Profile import and export Web software upgrade |
||
| Others | |||
| Working Environment | Working temperature: 0 ° C to 40 ° C (No Congeal); Storage temperature: -40 ° C to 70 ° C (No Congeal); Operating humidity: 10% to 90% RH Storage humidity: 5% to 90% RH |
||
| Accessories | 1* User manual 1* Power adapter (national standard 12V/1A, wire length 1.5M) |
||
| Packing | Neutral English packaging | ||
| Product net weight | 0.2 KG | ||
| Total weight | 0.35 KG | ||
Can you printing Customer logo on products?
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
