Product Details
Place of Origin: China
Brand Name: SY
Certification: FCC/CE/ROSH
Model Number: MF201Pro
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard color box or customized design color box packaging
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 pieces per week
Antenna: |
2 X External Antennas |
Button: |
Reset/WPS Button |
Encryption: |
WPA-PSK/WPA2-PSK |
Frequency Band: |
2.4GHz & 5GHz |
Humidity: |
10%~90% Non-Condensing |
Interface: |
1 X 10/100Mbps WAN/LAN Port |
LED Indicator: |
Power/WiFi/Signal/LAN/WAN |
Operating Temperature: |
0℃~40℃ |
Power Supply: |
DC 12V/1A |
Speed: |
Up To 300Mbps |
Storage Temperature: |
-40℃~70℃ |
WiFi Standard: |
802.11ac |
Wireless Standard: |
4G LTE |
Antenna: |
2 X External Antennas |
Button: |
Reset/WPS Button |
Encryption: |
WPA-PSK/WPA2-PSK |
Frequency Band: |
2.4GHz & 5GHz |
Humidity: |
10%~90% Non-Condensing |
Interface: |
1 X 10/100Mbps WAN/LAN Port |
LED Indicator: |
Power/WiFi/Signal/LAN/WAN |
Operating Temperature: |
0℃~40℃ |
Power Supply: |
DC 12V/1A |
Speed: |
Up To 300Mbps |
Storage Temperature: |
-40℃~70℃ |
WiFi Standard: |
802.11ac |
Wireless Standard: |
4G LTE |

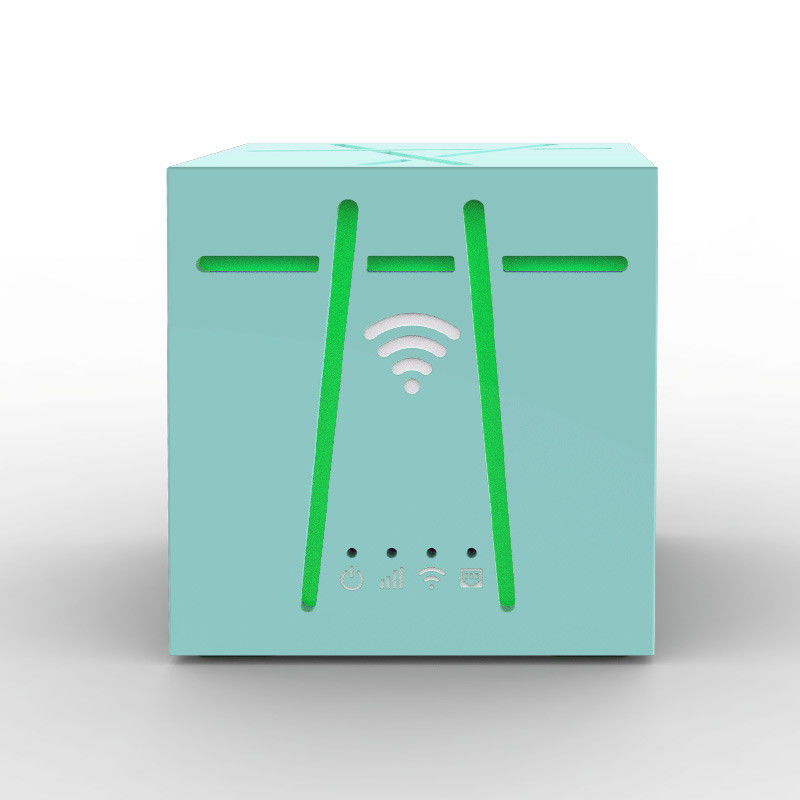

MAGIC CUBE MF201Pro 4G LTE WiFi Router,3000mAh Battery,4*LED,256Mbit+128Mbit Flash/RAM,ASR1803 CPU
| ID Name: | MAGIC CUBE MF201Pro |
| Size: | 76mm *76mm * 78mm(Built-in Antenna) |
| Weight | 260g |
| LCD/LED: | 4 *Blue LED+4*(Red,Green Blue )LED |
| Battery: | 3000mah(Optional) |
| Band(Default): |
TDD-LTE: B38/39/B40/B41; FDD-LTE: B1/B3/B5/B7/B8/B20; UMTS: B1/B5/B8 |
| Frequency band (optional): |
TDD-LTE: B34/B38/B39/B40/B41; FDD-LTE: B1/B2/B3/B4/B5/B6/B7/B8/B9/B12/B13/B17/B19/B20/B25/B26/B28; TD-SCDMA: B34/B39; WCDMA: B1/B2/B5/B8 |
| CPU: | ASR1803 Series |
| Device memory: | Flash/RAM: : 256Mbit + 128Mbit Nand Flash |
| WIFI chip: | ASR5803 |
| Indicator light / display | 4 * Single Blue LED+4* (Red,Green,Blue) LED |
| System | |||||||||||||
| Home page | Connection status | UL speed | Supported | ||||||||||
| DL speed | Supported | ||||||||||||
| Connection duration | Supported | ||||||||||||
| Network setup | Network setup interface | Supported | |||||||||||
| WiFi setting interface | Supported | ||||||||||||
| Connecting device | Connect the device information interface | Supported | |||||||||||
| Statistical data | Traffic management interface | Supported | |||||||||||
| Status information | Display ICCID, IMEI, RSRQ, SINR, PCI, IMSI, signal strength, SSID, firmware version | Supported | |||||||||||
| Language | Language selected | Supported | |||||||||||
| Icon information | Indicates network type, operator, signal strength, 4G connection status, wired connection status, SIM card status,WiFi status, battery charging and discharging status | Supported | |||||||||||
| Function menu | SMS, phone book, Advanced Settings, shortcut Settings | Supported | |||||||||||
| Network setup | Connection mode | Manual connection | Supported | ||||||||||
| Automatic connection | Supported | ||||||||||||
| roam | Supported | ||||||||||||
| Network selection | Manual selection | Supported | |||||||||||
| Automatic network selection | Supported | ||||||||||||
| APN Setting | APN management, global APN automatic matching | Supported | |||||||||||
| colored light switch | webui One-click enable/Turn off the color lights function | Supported | |||||||||||
| Manual BAND setup | Manually select a locked frequency band | Supported | |||||||||||
| Message | setting | New message prompt Settings | Supported | ||||||||||
| Common short message function | Edit message | Supported | |||||||||||
| Send message | Supported | ||||||||||||
| Receive message | Supported | ||||||||||||
| Read message | Supported | ||||||||||||
| Delete message | Supported | ||||||||||||
| Mass text messaging | Supported | ||||||||||||
| Parallel with data services | Supported | ||||||||||||
| Displays the serial number of the stored message | Supported | ||||||||||||
| Reply to message | Supported | ||||||||||||
| Forward message | Supported | ||||||||||||
| message chat | Supported | ||||||||||||
| message status report | Supported | ||||||||||||
| WIFI Setting | Main WiFi | WiFi switch (WiFi enabled/disabled) | Supported | ||||||||||
| Multi-ssid switch (Supports broadcasting of up to two SSIDs, enabling/disabling multi-SSIDs) | Supported | ||||||||||||
| Set SSID, encryption type, password, and encryption mode | Supported | ||||||||||||
| Set to enable /disable SSID broadcast | Supported | ||||||||||||
| The encryption modes are None, WPA2 personal PSK (WEP), and WPA/WPA2 | Supported | ||||||||||||
| Set the maximum number of terminal connections(<= 8) | Supported | ||||||||||||
| Displays the password ,The password mask is enabled or disabled | Supported | ||||||||||||
| WPS | WPS Functional support (PIN, PBC) | Supported | |||||||||||
| Internet WiFi | Enable/disable Internet WiFi | Supported | |||||||||||
| Advanced Settings | Set network mode, band range, channel bandwidth, country/region, Channel (1-13 | Supported | |||||||||||
| WLAN MAC Address filtering | Filtering rule: No rule, whitelist, blacklist | Supported | |||||||||||
| Advanced Settings | Power consumption management | WiFi coverage setting | Supported | ||||||||||
| Set WiFi sleep duration | Supported | ||||||||||||
| Route | Set the IP address, DHCP IP pool range, subnet mask, DHCP lease time, and enable/disable DHCP | Supported | |||||||||||
| Firewall | Port filtering: MAC/IP/ port filtering | Supported | |||||||||||
| Port mapping | Supported | ||||||||||||
| Update Settings | Supports local upgrade, OTA, and differential webui upgrade | Supported | |||||||||||
| Others | Restart and restore factory Settings | Supported | |||||||||||
| Shut down | Supported | ||||||||||||
| Quick start setting | Supported | ||||||||||||
| SNTP: SNTP sets and synchronizes the network time | Supported | ||||||||||||
| Example Modify a USB MAC address | Supported | ||||||||||||
| PIN Management: Enable/disable PIN, modify PIN, unlock USIM, PUK unlock USIM | Supported | ||||||||||||
| Quick setting | Basic setting | The first time you log in to the web user interface (webui), there is a simple setup guide for beginners to complete the basic Settings step by step | Supported | ||||||||||
| Power Features | Working Voltage | Power supply mode:Type-C | Supported | ||||||||||
| Voltage range | 5-12V DC | Supported | |||||||||||
| Working current | 1.0A | Supported | |||||||||||
| Environmental | Operating temperature | -10℃～50℃ | Supported | ||||||||||
| Extreme working temperature | -20℃～75℃ | Supported | |||||||||||
| Storage temperature | -25℃～80℃ | ||||||||||||
| Working humidity | 10%～85%( non-condensing) | ||||||||||||
| Storage humidity | 5%～95%( non-condensing) | ||||||||||||
| Interface | RJ45 | 1 * LAN (10Mbps/100Mbps Adaptive Ethernet port) | |||||||||||
| LTE SIM | 1 * 4FF SIM slot | ||||||||||||
| Type-C | 1* Type-C Power supply interface | ||||||||||||
| RET/WPS Key | 1* RET/WPS Key (Hold down 3S to enable the WPS function,Hold down the 6S device to restore factory defaults) | ||||||||||||
| POWER | 1* POWER Key (Long press 3S to start, short press once to start/Turn off color lights and long press 6S to power off) | ||||||||||||
| LED Light | PWR | Power indicator light | |||||||||||
| WIFI | WiFi/WPS Indicator light | ||||||||||||
| LAN | LAN Status indication light | ||||||||||||
| Signal light | 3G/4G Signal indication light | ||||||||||||
| flashing lights | Red, green and blue flashing lights | ||||||||||||
| Reception Range | Omni-directional coverage without occlusion | Indoor: 15 meters; Outdoor: 50 meters | |||||||||||
| Operating System | WinXP | Supported | |||||||||||
| MAC OS | Supported | ||||||||||||
| Windows 7/8/8.1/10 | Supported | ||||||||||||
| Android 4.x/5.x/6.x/7.x/9.x | Supported | ||||||||||||
| LINUX 2.6~5.4 | Supported | ||||||||||||
| Accessories | AC-DC adapter | 1 * AC-DC adapter ; Input: AC 100 to 240V 50 to 60Hz ; Maximum current: 0.6A ; Output: DC 5V-1A /12-1A; | |||||||||||
| User manual | 1 * User Manual | ||||||||||||
| Warranty card | 1 * Warranty Card | ||||||||||||
| Data line | 1 * Standard data line | 选配 | |||||||||||
| Network cable | 1 *Standard network cables | 选配 | |||||||||||
| Polymer cell | 1*Polymer cell | 选配 | |||||||||||
| Packaging box & label | Customizable specifications and color printing content | ||||||||||||
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you!
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
