FDD WCDMA 4G Multi Mode Wifi Router American And European Versions

Name: FDD WCDMA 4G Multi Mode Wifi Router American And European Versions
Brand: Hunan Sanyi Technolody limited
SKU: GW245-E
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SY

Certification: FCC/CE/ROSH

Model Number: GW245-E

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$19-US$22/PC

Packaging Details: Standard color box or customized design color box packaging

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T

Supply Ability: 3000 pieces per week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                4G Multi Mode Wifi Router, FDD Multi Mode Wifi Router


Antenna:	2x2dBi	Data Rate:	300Mbps
Encryption:	AES/TKIP	Frequency Band:	2.4GHz
Interface:	1x WAN, 4x LAN	Network Protocol:	IEEE 802.11n/g/b
OS Compatibility:	Windows/Mac OS/Linux	Power Supply:	DC 12V/1A
Product Name:	Commercial 4G Router	Security:	WEP/WPA/WPA2
Warranty:	1 Year

Antenna:	2x2dBi
Data Rate:	300Mbps
Encryption:	AES/TKIP
Frequency Band:	2.4GHz
Interface:	1x WAN, 4x LAN
Network Protocol:	IEEE 802.11n/g/b
OS Compatibility:	Windows/Mac OS/Linux
Power Supply:	DC 12V/1A
Product Name:	Commercial 4G Router
Security:	WEP/WPA/WPA2
Warranty:	1 Year

FDD WCDMA 4G Multi Mode Wifi Router American And European Versions

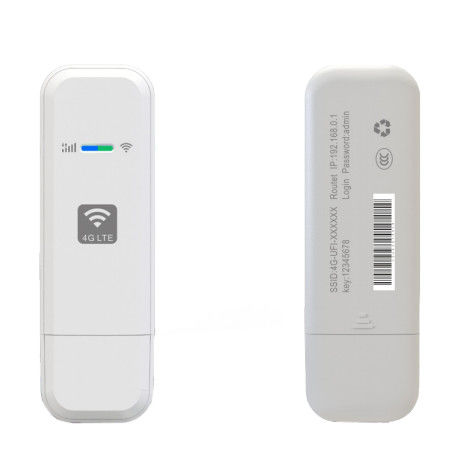

GW245 American and European Versions 4G LTE FDD & WCDMA Multi-Mode Router

GW245 series is cost competitive multi-mode USB WIFI DONGLE, compliant with 3GPP Release 9, LTE 4G, 3G This multi-mode multi -band USB WIFI DONGLE ensures operator to enjoy the cost-benefits over service and share of network.

• Multi-mode multi-band access of LTE 4G FDD, TDD bands

• Adaptive and Reliable Radio Access Modes: 4G, 3G

Multi-band LTE and UMTS

GW245 series can support multiple bands crossing 4G, 3G These spectrums are the most widely used and are prime bands for 4G, 3G deployments globally.

Under appropriate base station supports, GW245 series' speed of LTE FDD is theoretically 50 Mbps at uplink, and downlink speed is up to 150 Mbps. It results in a fast and robust uplink and downlink performance.

Supporting band:

Versions	FDD-LTE Band	TDD-LTE Band	WCDMA Band
GW245-AS	B1,B3,B5	B40	B1,B5
GW245 -E	B1,B3,B7,B8,B20	NA	B1,B8
GW245 -A	B2,B4,B5,B7	NA	B2,B4,B5
GW245 -J	B1,B3,B8,B18,B19	B26	B1,B8
GW245 -M	B1,B3,B8	B38,B40,B41	B1,B8

FDD WCDMA 4G Multi Mode Wifi Router American And European Versions 0

General Specifications

CPU: ZX297520V3

Standard: 3GPP Release 9

UE Category: CAT.4

Wi-Fi: 2.4GHz (802.11 b/g/n compliant)

LED Indicators: Wi-Fi/Signa

SIM: 4FF USIM (support 1.8V / 3.0V)

Reset Button: Tact switch x1

Power Supply:USB input: 5v-1a, electric power 2W

Dimension: 88*28*12.3mm
Weight: 25g

Software Specifications

Networking

Ipv4: Support

Ipv6: Support

Ipv4/ v6 dual stack: Support

NAT Mode: Support (customizable)

DHCP Server: Support

NTP Client: Support

HTTP Server: Support (customizable)

Dynamic NAT: Support (customizable)

Manual APN configuration: Support

IP address reservation from DHCP IP pool: Support

Check status of DHCP IP address pool: Support

DHCP IP Pool Modification: Support

DHCP Subnet mask modification: Support

DNS modification: Support

SMS over SGs Func at LTE

SMS's receiving and reading

Device Management

Web Access (Remote/Local): Support

Configuration from web: Support

Admin Password-web: Support

User Password-web: Support

Factory default reset: Support

Firmware update through web: Support

Tr069: Support

Status

User Name/ Password configuration: Support

Wi-Fi SSID/ Password configuration: Support

Firewall: Support

IP Filter: Support

MAC Filter: Support

URL Filter: Support

Wi-Fi
No.	Feature	Status	Comments
1	Network Name (SSID)	Support
2	SSID Broadcast	Support
3	Broadcast Switch	Support
4	802.11 b/g/n Mode selection ⚫ 802.11b ⚫ 802.11g ⚫ 802.11n ⚫ 802.11 b/g/n	Support
5	Encryption algorithm ⚫ None ⚫ WPA-PSK ⚫ WPA2-PSK	Support
6	Bandwidth selection 20M, 40M, 20/40MHz	Support	Factory Default 20/40MHz
7	Maximum users	10 users	2.4 GHz

Package Content

Item	Description	Remarks
GW245 USB WIFI DONGLE	X 1
Manual book	X 1

Company Profile

Hunan Sanyi Technology Co., Ltd. located at Changsha, China. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT WiFi router, 4G/5G router, Mesh

Router, WiFi 6 Router, Industrial&Enterprise Router, Vehicles Router, AP, Outdoor CPE and LTE CPE. Sayi is also a Wi-Fi coverage service provider, provides the solution for hotel, school, hospital, enterprise, airport and vehicle field. We have built a long term cooperation with Mediatek, Broadcom and Qualcomm, capably offering good quality products and fast after-sale service to our clients. Our main customers are China Mobile, Vivacom in

Bulgaria, Sprint, T-Mobile, AT&T in USA and Smart in Philippine.

Sanyi warmly welcome everybody joining in and build win-win cooperation.

FAQ

Can you printing Customer logo on products?

Yes, we can printing your logo on products.

Do you provide PCBA board order only?

Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

Can you desin products as per customer's requirements?

Yes, of course. We have our own R&D department, we have ability to design and produce at same time.

How do you ship the goods and how long does it take to arrive?

It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

How to proceed with an order?

Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our

suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

What is your payment term?

We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you!
