Product Details
Place of Origin: China
Brand Name: SY
Certification: FCC/CE/ROSH
Model Number: GW111
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: US$23-US$27/PC
Packaging Details: Standard color box or customized design color box packaging
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 pieces per week
Button: |
Reset/WPS Button |
Data Rate: |
300Mbps |
Encryption: |
WPA/WPA2 |
Frequency Band: |
2.4GHz/5GHz |
Interface: |
1 X 10/100Mbps WAN Port, 3 X 10/100Mbps LAN Ports |
LED Indicator: |
Power/WLAN/WAN/LAN |
Name: |
4G LTE WiFi Router |
Network Type: |
4G LTE |
Power Supply: |
DC 12V/1A |
SIM Card Slot: |
1 X SIM Card Slot |
Button: |
Reset/WPS Button |
Data Rate: |
300Mbps |
Encryption: |
WPA/WPA2 |
Frequency Band: |
2.4GHz/5GHz |
Interface: |
1 X 10/100Mbps WAN Port, 3 X 10/100Mbps LAN Ports |
LED Indicator: |
Power/WLAN/WAN/LAN |
Name: |
4G LTE WiFi Router |
Network Type: |
4G LTE |
Power Supply: |
DC 12V/1A |
SIM Card Slot: |
1 X SIM Card Slot |

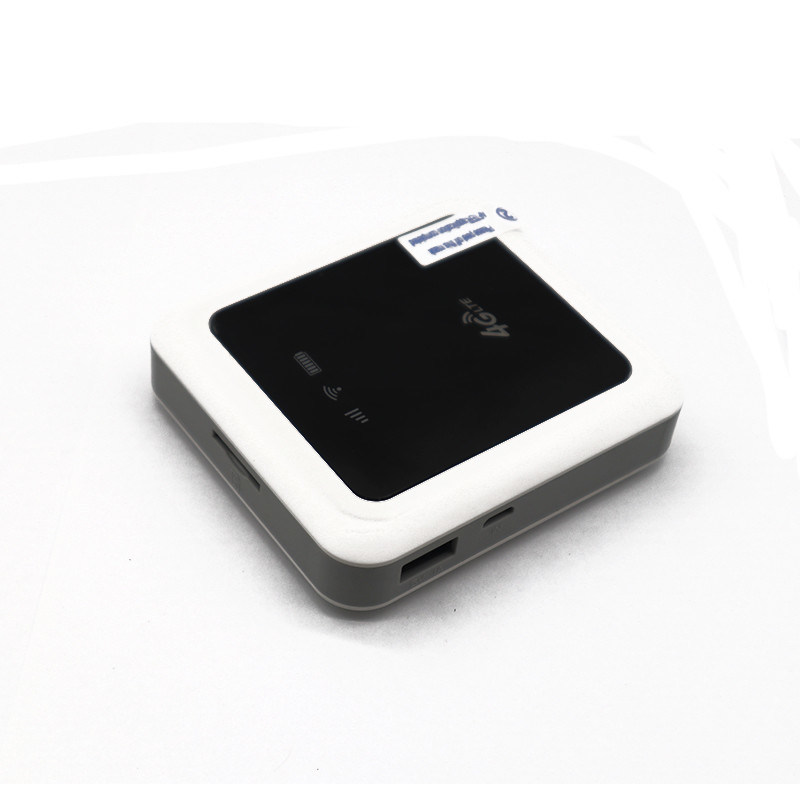

Hotspot Unlock 4G Modem Wifi Router with Sim Card and 2 External Antennas
| ◇ Basic Product Information | Item | Remark |
| ◇ Model | 4G LTE Router | WiFi hotspot |
| ◇ Platform | MDM9610 | |
| ◇ SA Time | 11.2016 | |
| ◇ Band/Mode | FDD-LTE: B1/B3/B5/B7/B8/B20 UMTS:B1/B8 GSM Quad Band |
|
| ◇ Type | Portable hotspot device with LCD or LED Light | |
| ◇ Size(mm) | 86*76*22mm | 123*109*41 |
| ◇ Weight(g) | 158 | |
| ◇ System memory | NandFlash 1Gb+512Mb | |
| ◇ HW Description | Item | Remark/Supplier |
| ◇ Main CPU or Co-CPU (MHz) | ||
| * CPU (MHz) | 550MHz | MDM9610 |
| * Air interfaces | GSM/GPRS/EDGE | DTM (simple class A), multislot class 12 |
| UMTS | R99 384 kbps DL / UL R5 HSDPA 7.2 Mbps DL R6 HSUPA 5.76 Mbps UL R7 HSPA+ 21 Mbps DL / 5.76 Mbps UL R8 DC-HSPA+ 42 Mbps DL / 5.76 Mbps UL |
|
| FDD-LTE | Cat3 100 Mbps DL / 50Mbps UL | |
| ◇ WIFI | ||
| * Frequency Band | 2.4GHz | |
| * 802.11b/g/n | up to 150Mbps | Modes supported: 802.11b mode 802.11g only mode 802.11n only mode 802.11b/g only mode 802.11b/g/n mode 802.11n 1x1 (2.4GHz, 20MHz) |
| * User amount | Up to 10 | |
| * AP Features | Security modes | Open WEP WPA-PSK WPA2-PSK WPA-WPA2 Hybrid mode (Mixed Mode) TKIP-CCMP Hybrid mode (Mixed Mode) WPS 2.0 Hidden SSID supported |
| Concurrency (FC quality for LE1.0) | AP-STA mSSID (AP-AP) – up to 2 SSID's STA-STA communication block/allow between two SSIDs Independent security modes (Open, WEP, WPA, WPA2, WAPI) for concurrency modes above except WEP in both interfaces Channel of operation - same channel |
|
| Other | QoS and PS WMM WMM-PS/uAPSD ERP protection Coexistence LTE coexistence (static channel selection) Data Switching/Forwarding Switching of packets amongst clients Support for forwarding data to and from WAN VPN Pass-through |
|
| ◇ Interface | ||
| * Antenna | 4G/3G/2G Main antenna 4G MIMO/3G Rx Diversity antenna WiFi antenna |
Internal |
| * LCD | 1.46" 128×128 TFT | |
| * USB | Micro USB | USB 2.0 High Speed |
| * SIM/USIM Card slot | Yes | Standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102 |
| * Micro-SD Card slot | Yes | |
| *尺寸 L*H*W (mm) | 86*76*22mm | |
| *Weight(g) | 252g | |
| ◇ Button | ||
| * Power | Yes | |
| * WPS | Yes | |
| * Reset | Yes | |
| ◇ Battery | Item | Remark/Supplier |
| * Lion battery | 5200mAh | 18650 Lion Battery with PowerBank |
| ◇ Other Description | Item | Remark/Supplier |
| ◇ Electrical performance spec | ||
| * RF Power Spec | Class 4 for UMTS/HSPA/LTE; Class 4 for GSM 850/900; Class 1 for GSM 1800/1900; Class E2 for EDGE 850/900/1800/1900 |
|
| ◇Environmental reliability test condition | ||
| * Normal Operation | 0°C to +45°C | |
| * Restricted Operation | -10°C to +55°C | |
| * Storage | -20°C to +70°C | |
| ◇ Compliance | ||
| * ROHS | YES, EU RoHS | |
| * JATE | Yes | |
| * TELEC | Yes | |
| * PSE | YES | |
| * others | depend on customer required | |
Can you printing Customer logo on products?
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
