Home > products > 4G LTE WiFi Router > 2.4GHz 150Mbps / 50Mbps 4G LTE WiFi Router MT7628NN CPU 5dBi / 3dBi Antenna

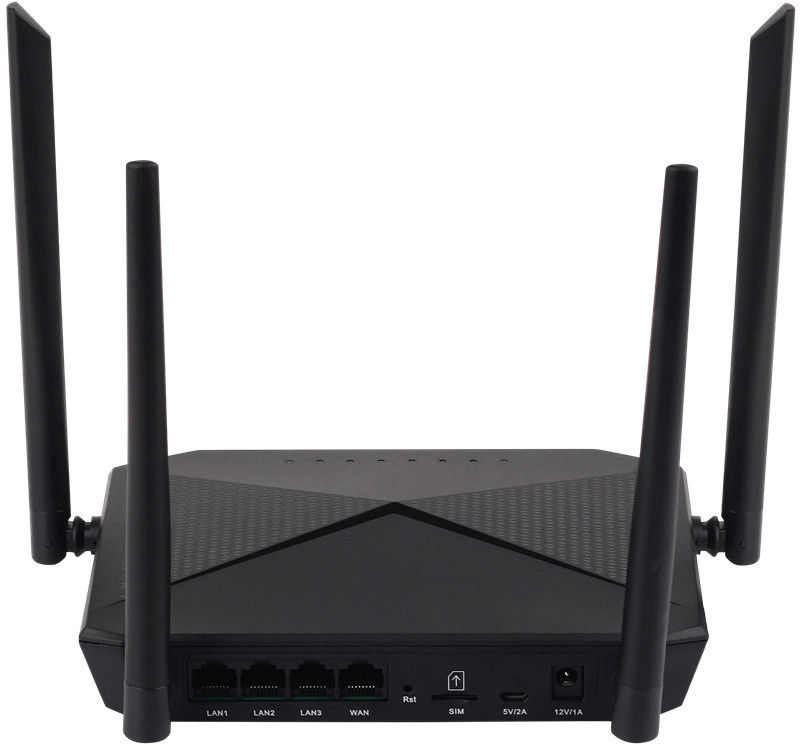

2.4GHz 150Mbps / 50Mbps 4G LTE WiFi Router MT7628NN CPU 5dBi / 3dBi Antenna

Product Details

Place of Origin: China

Brand Name: SY

Certification: FCC/CE/ROSH

Model Number: SF803

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$98-US$105/PC

Packaging Details: Standard color box or customized design color box packaging

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T

Supply Ability: 3000 pieces per week

Get Best Price
Highlight:

MT7628NN 4G LTE WiFi Router

,

150Mbps 4G LTE WiFi Router

,

2.4GHz 50 Mbps Wifi Router

Antenna:
2 X External Antennas
Button:
Reset/WPS
Frequency:
2.4GHz & 5GHz
Humidity:
10%~90% Non-condensing
Interface:
1 X WAN, 3 X LAN
LED:
Power/WAN/Wi-Fi/LAN
Name:
4G LTE WiFi Router
Operating Temperature:
0℃~40℃
Security:
WPA2-PSK, WPA-PSK, WEP
Speed:
300Mbps & 867Mbps
Storage Temperature:
-40℃~70℃
Type:
Wireless Router
Antenna:
2 X External Antennas
Button:
Reset/WPS
Frequency:
2.4GHz & 5GHz
Humidity:
10%~90% Non-condensing
Interface:
1 X WAN, 3 X LAN
LED:
Power/WAN/Wi-Fi/LAN
Name:
4G LTE WiFi Router
Operating Temperature:
0℃~40℃
Security:
WPA2-PSK, WPA-PSK, WEP
Speed:
300Mbps & 867Mbps
Storage Temperature:
-40℃~70℃
Type:
Wireless Router
2.4GHz 150Mbps / 50Mbps 4G LTE WiFi Router MT7628NN CPU 5dBi / 3dBi Antenna

4G LTE WiFi Router, MT7628NN 64M/8M, 150/50Mbps, 2.4GHz, WCDMA/LTE, 5dBi/3dBi Antenna, Bridge/Router


CPU/Memory
CPU: MT7628NN
RAM: 64M
ROM: 8M

4G
Standard: WCDMA R7, LTE R9
Compatibility: 4G / 3G / 2G
4G rate: 150Mbps / 50Mbps
Frequency(optional):
CN - TDD LTE: B34/B38/B39/B40/B41, FDD LTE: B1/B3/B5/B8, WCDMA: B1/B5/B8
AU - TDD LTE: B38/B40/B41, FDD LTE: B1/B3/B5/B7/B8/B20/B28, WCDMA: B1/B5/B8
NA - TDD: LTE B38/B40/B41, FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B12*/B17*/B66*,
WCDMA: B1/B2/B4/B5/B8

WLAN
Standard: IEEE 802.11 b/g/n
Frequency: 2.4 Ghz
Radio mode: MiMo 2x2
Transmit Power: 17±2dBm
Data rate: 300Mbps
Sensitivity: 11n : -70dBm@10% PER, 11g : -72dBm@10% PER, 11b: -88dBm@8% PER

Antenna
4G: External 5dBi 4G antenna x2
WiFi: External 3dBi 2.4 Ghz antenna x2

Interfaces
Wire: 1 x 10/100M RJ45 WAN port, 3 x 10/100M RJ45 LAN port
Card slot: 1 x SIM Card Socket
LED: 1 x Power, 3 x LAN, 1 x WAN, 1 x Wireless, 1 x 4G, 1 x Internet
Other: Reset Button x 1

Software
Operating mode: Bridge, Router, Wireless station, Wireless repeater, 3G/4G mode
Internet method: 5G/4G, WAN(Static IP, DHCP client, PPPoE client)
Services: DHCP Server, DHCP Relay, DDNS
Network techniques: Port forwarding, DMZ, UPnP, VPN(L2TP/PPTP, Static routing
Security defense: IP filtering, MAC filtering, URLfiltering, Port-scanning defense, SYN flooding attack
QoS: IP based
Other: Quick installation guide

Physical
Dimension(folded): 225 x 158.5 x 40 mm
Weight: 235 g
Mounting: Desktop/Wall mount

Power
Power supply: 12V/1A DC , 5V/2A Type C
Power source: 100 – 240V AC, 50/60Hz
Power consumption (max): 12 W

Environmental
Operating temperature: -20°C ~ +55°C
Humidity: 0 ~ 90 % (non-condensing)

Package contains
Router: 1
12V 1A DC: 1
