Product Details
Place of Origin: China
Brand Name: SY
Certification: FCC/CE/ROSH
Model Number: SF808
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: US$39-US$45/PC
Packaging Details: Standard color box or customized design color box packaging
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 pieces per week
Antenna: |
2 X External Antenna |
Button: |
1 X WPS/Reset Button |
Ethernet Port: |
1 X 10/100Mbps WAN/LAN Port |
Frequency Band: |
2.4GHz |
LED Indicator: |
1 X Power LED, 1 X WAN LED, 1 X WLAN LED, 1 X Signal Strength LED, 1 X 4G LED |
Network Standard: |
4G LTE |
Power Supply: |
Input: AC 100-240V, 50/60Hz, 0.3A; Output: DC 5V/1A |
Product Name: |
4G LTE WiFi Router |
SIM Slot: |
1 X SIM Card Slot |
USB Port: |
1 X USB 2.0 Port |
WiFi Standard: |
802.11 B/g/n |
Wireless Speed: |
300Mbps |
Antenna: |
2 X External Antenna |
Button: |
1 X WPS/Reset Button |
Ethernet Port: |
1 X 10/100Mbps WAN/LAN Port |
Frequency Band: |
2.4GHz |
LED Indicator: |
1 X Power LED, 1 X WAN LED, 1 X WLAN LED, 1 X Signal Strength LED, 1 X 4G LED |
Network Standard: |
4G LTE |
Power Supply: |
Input: AC 100-240V, 50/60Hz, 0.3A; Output: DC 5V/1A |
Product Name: |
4G LTE WiFi Router |
SIM Slot: |
1 X SIM Card Slot |
USB Port: |
1 X USB 2.0 Port |
WiFi Standard: |
802.11 B/g/n |
Wireless Speed: |
300Mbps |

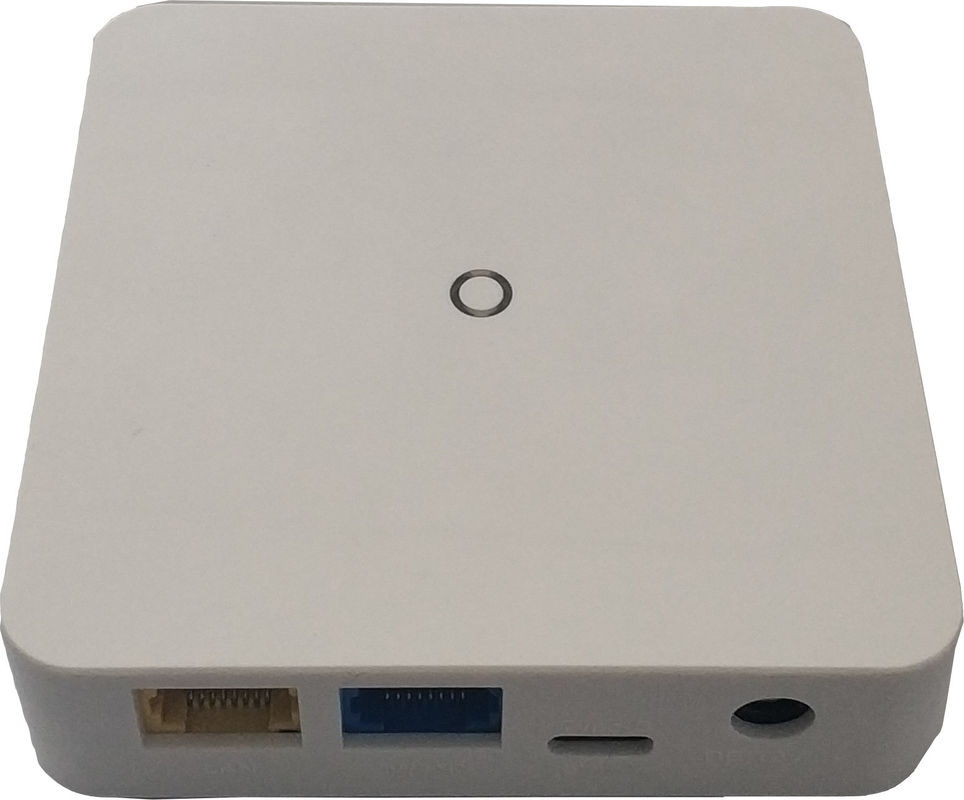

SF808 4G LTE Wireless Router - High Performance, Intelligent Hot Backup & Multi-Power Supply
| CPU/Memory | |
| CPU |
MT7628NN
|
| RAM | 64M |
| ROM | 8M |
| 4G | |
| Standard | WCDMA R7, LTE R9 |
| Compatibility | 4G / 3G / 2G |
| 4G rate | 150Mbps / 50Mbps |
| Frequency(optional) |
CN - TDD LTE: B34/B38/B39/B40/B41, FDD LTE: B1/B3/B5/B8, WCDMA: B1/B5/B8
AU - TDD LTE: B38/B40/B41, FDD LTE: B1/B3/B5/B7/B8/B20/B28, WCDMA: B1/B5/B8
NA - TDD: LTE B38/B40/B41, FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B12*/B17*/B66*,
WCDMA: B1/B2/B4/B5/B8
|
| WLAN | |
| Standard | IEEE 802.11 b/g/n |
| Frequency | 2.4 Ghz |
| Radio mode | MiMo 2x2 |
| Transmit Power |
17±2dBm
|
| Data rate |
300Mbps
|
| Sensitivity |
11n : -70dBm@10% PER, 11g : -72dBm@10% PER, 11b: -88dBm@8% PER
|
| Antenna | |
| 4G |
Internal 5dBi 4G antenna x2
|
| WiFi |
Internal 3dBi 2.4 Ghz antenna x2
|
| Interfaces | |
| Wire |
1 x 10/100M RJ45 WAN port, 1 x 10/100M RJ45 LAN port
|
| Card slot | 1 x SIM Card Socket |
| LED |
1 x LAN, 1 x WAN, 1 x Wireless, 1 x 4G
|
| Other | 1 x Reset Button |
| Software | |
| Operating mode |
Bridge, Router, Wireless station, Wireless repeater, 3G/4G mode
|
| Internet method | 5G/4G, WAN(Static IP, DHCP client, PPPoE client) |
| Services | DHCP Server, DHCP Relay, DDNS |
| Network techniques | Port forwarding, DMZ, UPnP, VPN(L2TP/PPTP, Static routing |
| Security defense | IP filtering, MAC filtering, URLfiltering, Port-scanning defense, SYN flooding attack |
| QoS | IP based |
| Other | Quick installation guide |
| Physical | |
| Dimension(folded) |
88 x 88 x 24 mm
|
| Weight |
83.5 g
|
| Mounting | Desktop |
| Power | |
| Power supply |
12V/1A DC , 5V/2A Type-C
|
| Power source | 100 – 240V AC, 50/60Hz |
| Power consumption (max) | 12 W |
| Environmental | |
| Operating temperature | -20°C ~ +55°C |
| Humidity | 0 ~ 90 % (non-condensing) |
| Package contains | |
| Router | 1 |
| 12V 1A DC Adapter | 1 |
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you!
Q6. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
