Product Details
Place of Origin: China
Brand Name: SY
Certification: FCC/CE/ROSH
Model Number: XPON 131W
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: US$22-US$29/PC
Packaging Details: Standard color box or customized design color box packaging
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 pieces per week
Ethernet Lan Port: |
RJ-45 Port X 2 |
Module Slot: |
Mini-PCIE Slot |
Os Compatibility: |
Windows, Mac OS, Linux |
Power Adapter: |
12V/1A |
Reset Button: |
Tact Switch X1 |
Security Protocol: |
WPA-PSK/WPA2-PSK |
Sim Card: |
1* Nano SIM Card Interface |
Spi Flash: |
16MB (MAX 32MB) |
Storage Humidity: |
5%~90% Non-Condensing |
Supported Bands: |
LTE-FDD B1/B3/B5/B7/B8/B20/B28, LTE-TDD B38/B40/B41 |
Supported Operating Systems: |
Windows 7/8/10, Mac OS, IOS, Android |
Usb Port: |
1 |
Wireless Frequency: |
2.4GHz |
Wireless Technology: |
4G LTE |
Ethernet Lan Port: |
RJ-45 Port X 2 |
Module Slot: |
Mini-PCIE Slot |
Os Compatibility: |
Windows, Mac OS, Linux |
Power Adapter: |
12V/1A |
Reset Button: |
Tact Switch X1 |
Security Protocol: |
WPA-PSK/WPA2-PSK |
Sim Card: |
1* Nano SIM Card Interface |
Spi Flash: |
16MB (MAX 32MB) |
Storage Humidity: |
5%~90% Non-Condensing |
Supported Bands: |
LTE-FDD B1/B3/B5/B7/B8/B20/B28, LTE-TDD B38/B40/B41 |
Supported Operating Systems: |
Windows 7/8/10, Mac OS, IOS, Android |
Usb Port: |
1 |
Wireless Frequency: |
2.4GHz |
Wireless Technology: |
4G LTE |
Technical Parameter
| Module | Parameters |
| User interface |
1*10/100/1000MRJ45 3*10/100M RJ45 1*POTS 1*USB 2.4G WiFi |
| PON |
EPON&GPON mode adaptive Interface Type:SC-UPC/SC-APC Network coverageradius:20KM |
|
GPON:upstream 1.25Gbps/downstream 2.5Gbps Transmission optical power:0.5dBm~5dBm Opticalreceive sensitivity:-7dBm~-28dBm |
|
|
EPON:upstream 1.25Gbps/downstream 1.25Gbps Transmission optical power: dBm~0.4dBm Optical receive sensitivity:-7dBm~-27dBm |
|
| Ethernet |
1*10/100/1000M+3*10/100M auto-negotiation Full/half duplex mode |
| Size | 140mm(L)x90mm(W)X30mm(H) |
| Environment |
Operating temperature:0°C~60°C Operatinghumidity:10%~85% non-condensing Storage temperature:-40°C~80°C Storage humidity:5%~95% non-condensing |
| Power supply |
12V/1A DC power interface size:21mm/5.5mm |
| Power Consumption | <8.5W |
| POTS Port |
1*RJ11with3REN Max 1km distance Balanced Ring,55V RMS |
| Man | WEB/TELNET/TR069/OMCI/OAM |

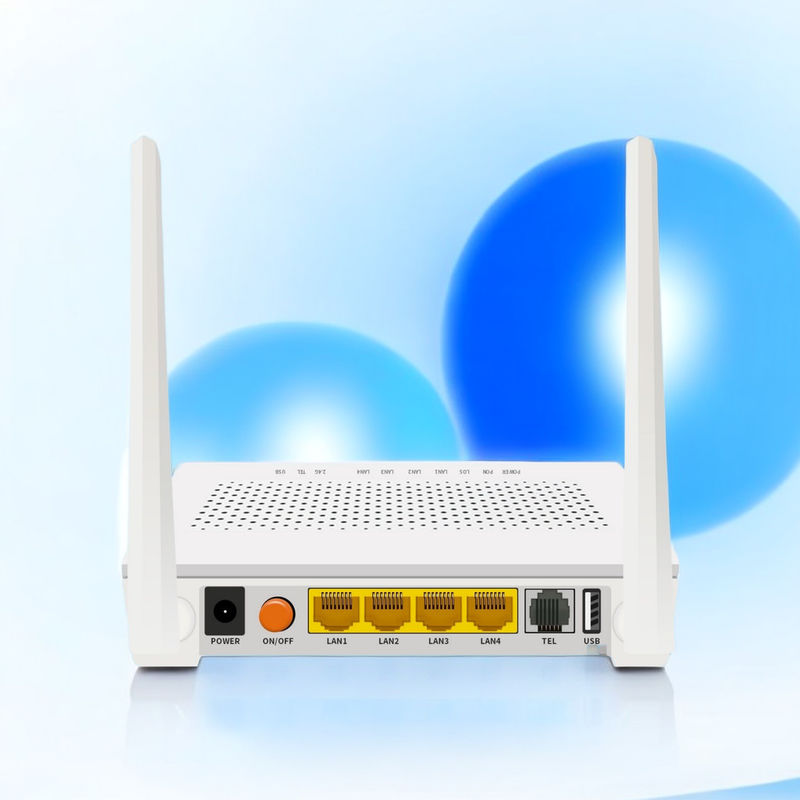

Product Interfaces
| 1 | POWER | Power status | On: The ONU is power on Off: The ONU is Power off |
| 2 | PON | ONU Register |
On: Success to register to OLT Blinking: In process of registering to OLT Off: Fail to register to OLT |
| 3 | LOS | Optical Signals |
On: Optical power lower than receiver sensitivity Off: Optical in normal |
| 4 | LAN | LAN Port status |
On:Ethernet connection is normal Blinking: Data is being transmitted Off: Ethernet connection is not set up |
| 5 | 2.4G | WIFI |
On: Wi - Fifunction Opens Blinking: Data is being transmitted Off: Wi - Fifunctions closes |
| 6 | POTS | POTS status | On: POTS port Registered Off: POTS port not Registered |
Key Features
- Support device - based rate limitation and bandwidth control
- In compliant with IEEE802.3ah Standard &ITU-T G984 standards
- Wi - Fi series meet 802.11 n/b/g technical standards
- Up to 20KM transmission Distance
- Support data encryption, group broadcasting, port Vlan separation, etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto - discovery/Link detection/remote upgrade of software;
- Support port VLAN configuration
- Support power - off alarm function ,easy for link problem detectionSupport broadcasting stormresistance function
- Support port binding
- Support port forwarding
- Support ACL to configure data packet filter flexibly
- Specialized design for system breakdown prevention to maintain stable system
- Support software online upgrading
- Support TR069 for ACS(Auto Config Server)
- Support PPPoE/DHCP Server/1PTV/VolP/NAT
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q4. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Q5. What is your payment term?
A: We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you!
Q6. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
